Lefoo Water-proof Ceramic Pressure Transmitter LFT2100

Name: Water-proof Ceramic Pressure Transmitter LFT2100
Brand: LEFOO INDUSTRIAL CO.,LTD.
Rating: 4.8 (50 reviews)

LEFOO LFT2100 water pressure transmitter is widely used in fire fighting, water treatment, water supply systems, air compressors, pneumatic devices, factory automation and other test systems for the measurement of fluid medium pressure. Unique waterproof and breathable structure to prevent internal and external air pressure inconsistency resulting in precision deviation. High overload capacity ceramic sensitive diaphragm with excellent corrosion and wear resistance. ASIC technology, MEMS technology, digital compensation technology, high precision, low temperature drift. The product also has the characteristics of small size, high protection level and strong anti-interference ability, and can be applied to various complex environments.

Features

* Unique waterproof and breathable structure.

* Excellent corrosion and anti-wear resistance.

* Adopt ceramic sensitive diaphragm with high overload capacity.

* With a variety of threaded connection and electrical connections.

* Small size, can be applied in various complex environment.

Get a Quote PDF Download

Transmitter

Pump

Specification
Features
Applications

Specification of Water-proof Ceramic Pressure Transmitter LFT2100

Technical parameter

LEFOO Water-proof Ceramic Pressure Transmitter LFT2100
Measurement Range	-0.1MPa~0...3MPa,0~0.1MPa...6MPa
Overload pressure	1.5 times the rated pressure
Burst Pressure	2 times the rated pressure
Accuracy➀	0.5%F.S(range>0.3MPa)、1.0%F.S
Stability	<0.5％F.S./Year
Working temperature	-20~85℃
Storage Temperature	-40~100℃
Medium Compatibility	Gas or liquid compatible with Alumina ceramics,304 stainless steel, fluororubbers or nitrile butadiene rubber
Electrical Properties	Two-wired	Three-wired
Output Signal	4~20mA	0.5~4.5V	0~5V	0~10V
Power Supply	10-36VDC	4.75-5.25VDC	10-30VDC	12-36VDC
Electrical Connection	Packard、DIN43650C(Small Hirschmann), Direct outlet, 4 core M12 Aviation connector
Enclosure Protection	IP65
Pressure connection	G1/4、NPT1/4、R1/4、BPS1/4、G1/2、7/16-20UNF、M201.5、M101、M14*1.5 etc.
Pressure Form	Gauge pressure G
Certification	RoHS, CE

Note➀: Measurement at 25 °C, includes a combined accuracy of linearity, repeatability and hysteresis.

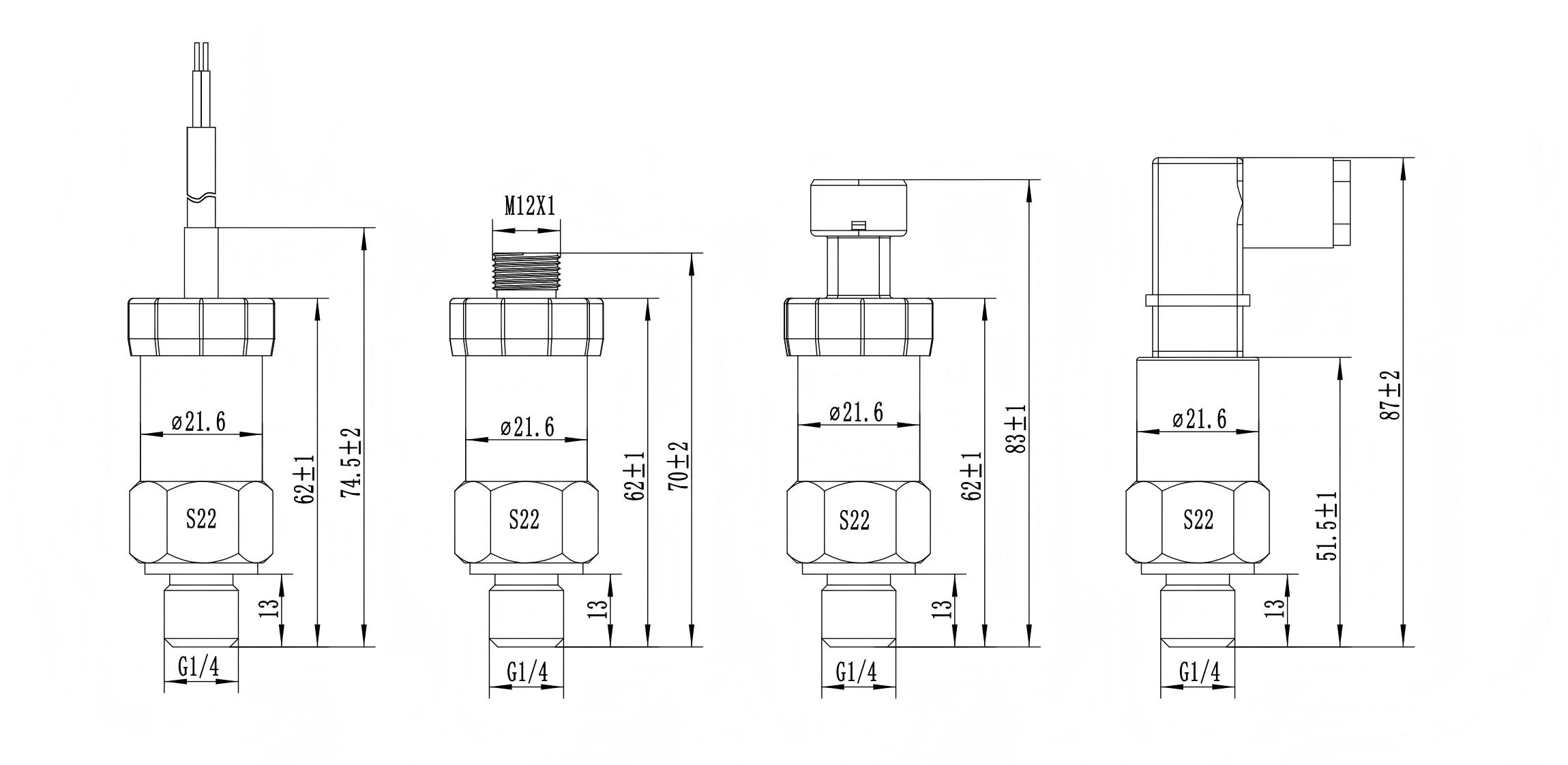

Dimension

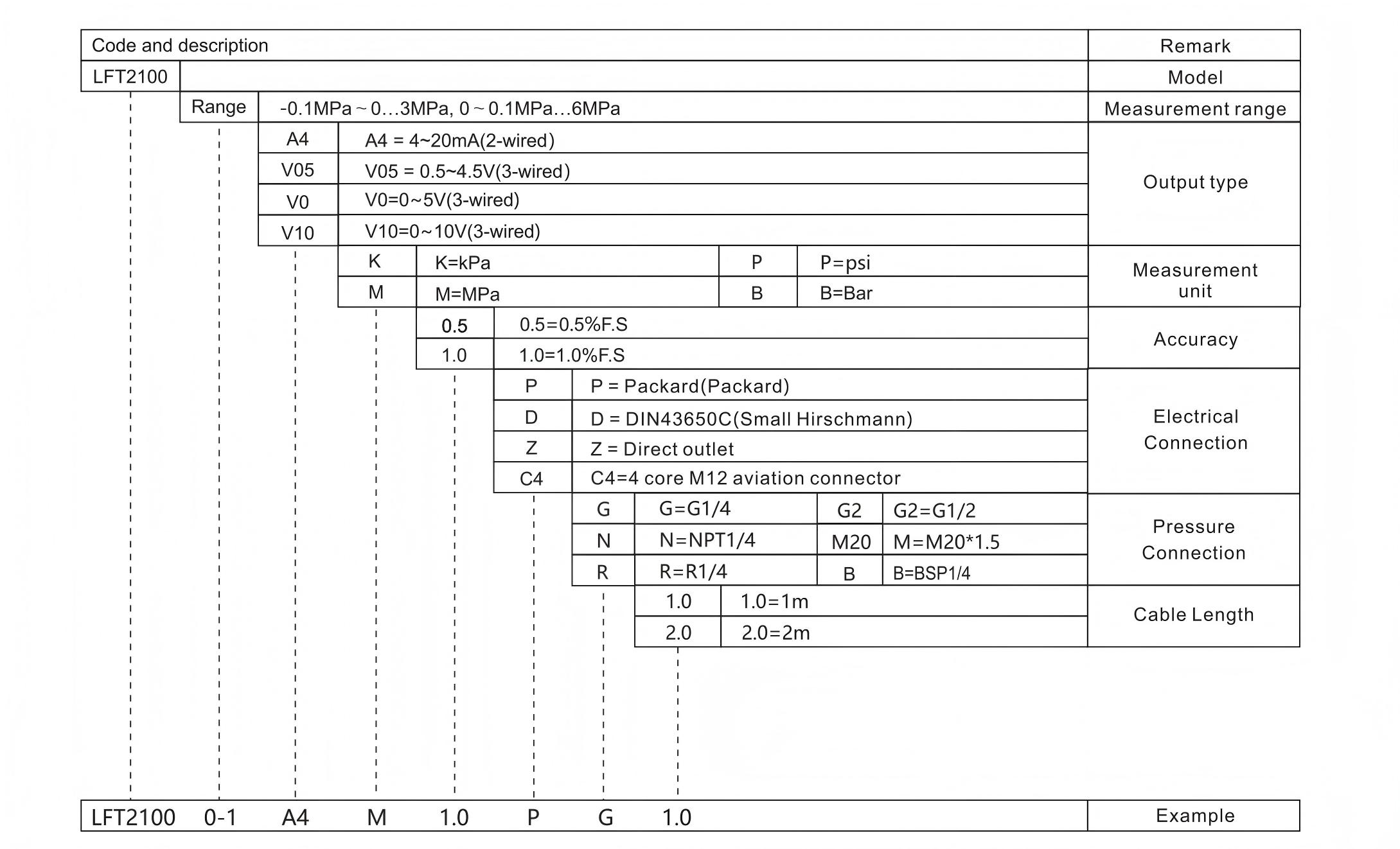

Selection Guide

For example: LFT2100 0-1 A4 M 1.0 P G 1.0(LFT2100 pressure transmitter, range 0-1MPa, output 4-20mA, accuracy 1.0%, packard connection, pressure port G1/4, outlet length 1m)

Features of Water-proof Ceramic Pressure Transmitter

Unique waterproof and breathable structure.
Excellent corrosion and anti-wear resistance.
Adopt ceramic sensitive diaphragm with high overload capacity.
With a variety of threaded connection and electrical connections.
Small size, can be applied in various complex environment.

Applications of Water-Proof Ceramic Pressure Transmitter LFT2100

LEFOO pressure transducer T2100 Match various data collection terminal equipment such as Frequency Converter, Signal Isolator, pressure control device, and PLC in applications as below.

Analytical tools

Automotive pressure monitoring

Air conditioning refrigerant monitoring

Beverage industry

Chemical chemistry

Confluence Exhaust

Car Charging Pile Coolant

Extruded board, thermal insulation board for underfloor heating

Gas alarm

Gas stove and vending machine

HVAC systems

Hydraulic equipment

Hydraulic base station

Hydraulic Robot Brake Control

Heat, power generation, auxiliary equipment

Luxury bath

Lithium battery manufacturing

Marine facilities

Mining industry

Medical Gas Alarm

Ozone equipment

Oil Testing Equipment

Power Project Test

PLC systems such as medical projects, HVAC, laboratory

Refrigeration equipment

Vacuum pump

Pharmaceutical industry

Pulp and paper

Pure water cooling device
