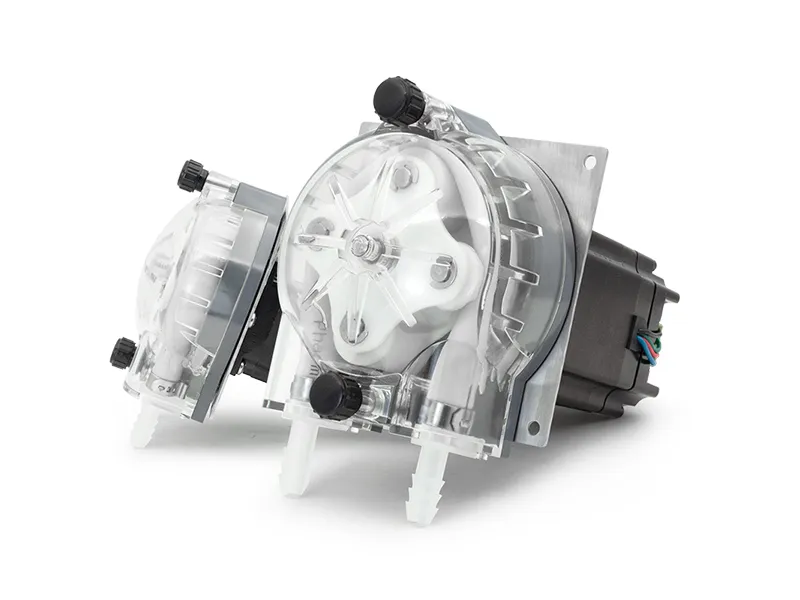

LEFOO LFP403/ST DC Stepper Motor Peristaltic Pump offers a wide flow range of 10–2050 ml/min with stable, low-noise operation. It supports PLC control and RS485 communication for precise system integration, featuring real-time start/stop, adjustable speed, and forward/reverse rotation. With customizable installation options, it is well suited for printing and dyeing, canned beverage production, environmental instruments, chemical processing, and beverage machines.
Features
*Support PLC control, RS485 communication
*Real-time start and stop, adjustable speed
*Positive and negative rotation
*Low noise, quiet and stable
*Installation method can be customized
TECHNICAL PARAMETER
| LEFOO Stepper Motor Peristaltic Pump LFP403/ST | |
| Installations method | Stainless steel mounting plate as standard (customizable) |
| Drive mode | Stepper motor |
| Control method | Driver control (Optional with PLC control) |
| Function | Precise adjustable flow control |
| Working Voltage | DC24V |
| Power | ≤24W |
| Weight | 1350g |
| Working environment | Temperature:0-45℃ Relative humidity:＜85%RH |
| Roller Quantity | Standard with 2 rollers + 2 training wheels |
FLOW STANDARD(ML/MIN)
| Voltage | Flow Range | Tube size | Tube Type |
| DC 24V | 10-850 | 25# | BPT Tube/ Silicone Tube/ A60-F/Viton Tube |
| 10-1400 | 17# | ||
| 10-2050 | 18# |
rEMARK
The above flow parameters are tested under the conditions of room temperature 23°C, standard atmospheric pressure, clean water, suction lift 0.2m, lift 0, and no pressure. For reference only.
Pump flow rate can be affected by viscosity, density, medium temperature, ambient temperature, inlet and outlet pressure, suction lift and lift of pump. To ensure the accuracy of the pump, it is necessary to keep the above factors without significant changes.
Support PLC control, RS485 communication
Real-time start and stop, adjustable speed
Positive and negative rotation
Low noise, quiet and stable
Installation method can be customized
The main application equipment of our DC brushless peristaltic pump can be classified into the following seven major areas: Household, Food & Beverag, Cleaning, Medical/Lab, Agriculture, Environmental/Water Systems and Printing.
1. Household Appliances
* Cooking Machine
* Sweeping Robot
* Dish-Washing Machine / Dishwasher
* Washing Machine
* Laundry Apparatus
* Kitchen Apparatus
2. Commercial Food & Beverage Equipment
* Food Machinery
* Drink Machine / Drinks Dispensing / Beverage Dispenser / Soda Beverage Fountains
* Coffee Machine
* Ice Cream Dispensing
* Drink Dispenser
* Beer Brewing Equipment
3. Cleaning & Washing Systems
* Automatic Car Washing Machine
* Welding Cleaning Machine
* Commercial Washing Machine
* Detergent Supply
* Dish-Washing Machine / Dishwasher (also listed in household)
4. Medical & Laboratory Equipment
* Blood Diagnostic Equipment
* Analytical Instruments
* Analytical & Testing Instrument Sample Supply
* Lab Sampling
* Medical Device
5. Agriculture & Horticulture
* Vegetable Cultivation
* Indoor Growing Shelves
* Indoor Farming
* Vertical Farming
* Hydroponics
* Agriculture Plating
6. Water & Environmental Systems
* Water Treatment
* Swimming Pool
* Aquarium
* Gas Analysis
7. Printing Systems
* Printing Equipment: Ink Supply
* Printing Machine
